Vision Inspection

Vision Inspection Systems for Printing, Laser Drilling and Laser Marking Machines

Our patented Vision Inspection with Single Tablet Rejection inspects for:

Print registration
Incomplete printing
Faded or blurry printing
Double printing
Chipped, capped or broken product
Coating defects
Stains or specks
Foreign object or rogue product removal
Aperture location and size

What is a Vision Inspection System?

The Ackley Hartnett designed the Vision Inspection System for the pharmaceutical, nutraceutical, and confectionery industries. It provides 100% inspection of logos for all our printing machines as well as inspection of laser drilled apertures on all of our laser drilling machines. We use the most accurate pattern recognition and image matching machine vision available to detect defects on tablets, capsules, softgels and confectionery items of all shapes and sizes.

How it Works

Inspection systems can be integrated into each of our printing and laser drilling machines. Additionally, a programmable HMI touch-screen with text translated in the language of your choice, shows camera confirmation of your products. Any product that is found to be defective is ejected using our single tablet rejection system, which features an exclusive vacuum drum pick off and integral vacuum manifold integrated into the vision inspection system.

Quality Assurance for Your Product

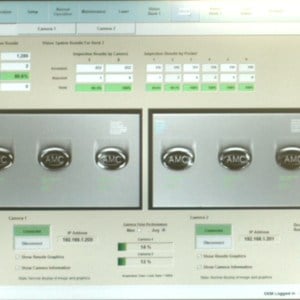

Vision Inspection ensures only high-quality products reach your customers. With dual cameras scanning both sides of every unit, the Vision Inspection ensures precise evaluation of mark quality, print registration, and laser mark accuracy. The System grades each tablet, capsule, or confectionery item against pre-programmed quality standards via the HMI and assigned a pass or fail score. Operators view live images from the cameras and track the percentage of accepted versus rejected units, allowing for real-time quality monitoring. Units that fail are automatically ejected using our Single-Unit Rejection System, featuring a vacuum drum pick-off and integral vacuum manifold – making this a perfect vision inspection system for pharmaceuticals.

A group of green labels with white text, ideal for organizing pharmaceutical machinery equipment.

Safety & Regulatory Compliance

We adhere to or surpass the strictest regulations set forth by the Food and Drug Administration (FDA) and their approach to Current Good Manufacturing Practice (CGMP) regulations.

cGMP Design
FDA 21 CFR Part 11 Compliant
Class 1 Laser System: FDA 21 CFR Part 1040
CE Compliant
OPC-UA Data Compliant

View our FDA & CE Compliance page

Engineered for Performance You Can Trust

Proudly made in the USA, our machines are built for simplicity and reliability, featuring a user-friendly interface, low maintenance costs, and an included toolkit. With worldwide customer support, you can trust Ackley Hartnett to provide reliable performance and help when you need it.
