Adjustable Angle Ramp Printer

Rotogravure Printing System for Tablets & Capsules

This high-output precision printing system uses edible inks to place logos onto pharmaceutical and confectionery products. Features an adjustable Ramp Feed Angle to optimize feed based on product flow characteristics. Bulk product is fed into the hopper, where each product is efficiently singulated and gravity-fed into carrier bar pockets for precise positioning. The continuous motion, multiple-lane carrier bar conveyor feed system exposes the top surface for inspection and printing. Requires compressed air, power & vacuum for operation.

Up to 1,200,000 PPH Single-Sided Rotogravure Printing

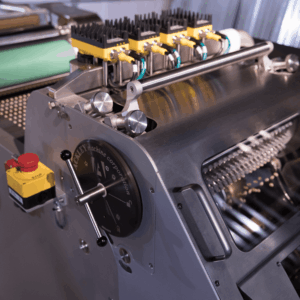

adjustable angle ramp printer picture on clear background

Machine Features

Multi-lane carrier bar system
Machine Safety Guarding with interlocks
Servo based motion with optical encoder position feedback
Stainless steel sprocket assemblies teamed with precision ground roller chain for precise registration
Quick-Release Pins for tool-less installation of carrier bars
Quick product change over
Adjustable Ramp Feed Angle
User friendly interface
Touch-screen adjustments for all inspection and printing parameters
Programmable settings for up to 50 products
Low maintenance cost
Tower light with buzzer

Capabilities

Output up to 500,000 PPH with inspection; up to 1.2 million PPH w/o inspection (dependent on product and ink characteristics)
Single-Sided marking using time proven rotogravure printing
Ability to print alpha-numeric text or graphic logos
Ability to print with solvent or water based ink solutions

Options

Vision inspection with vacuum-based single product rejection
Ink Maintenance System
OPC-UA Server Gateway
HMI screen text translated and displayed in language of choice
Secure remote support capabilities
Auto-backup of product settings

Safety & Regulatory Compliance

We adhere to or surpass the strictest regulations set forth by the Food and Drug Administration (FDA) and their approach to Current Good Manufacturing Practice (CGMP) regulations.

cGMP for Pharmaceuticals
FDA 21 CFR Compliance:
- Part 210
- Part 211
- Part 11
CE Compliant
NFPA 79
IEC / EN 60204-1
ISO 13849-1
CRC, c 870
CDRH Compliant

View our FDA & CE Compliance page

Engineered for Performance You Can Trust

Proudly made in the USA, our machines are built for simplicity and reliability, featuring a user-friendly interface, low maintenance costs, and an included toolkit. With worldwide customer support, you can trust Ackley Hartnett to provide reliable performance and help when you need it.
