Delta Laser Drill

C02 Laser Drilling for Tablets & Capsules

The Delta Laser Drilling Machine can drill precision holes in tablets and canisters for osmotic controlled release oral delivery (OROS). The fully adjustable hopper allows the product to flow smoothly to the laser station and can laser drill 50,000 to 60,000 pieces per hour. The machine can detect bilayered tablets and drill on a specific side of a tablet or canister LCT.

Up to 60,000 PPH Single or Double-Sided Laser Drilling

laser drill machine pictured on white background

Machine Features

Adjustable hopper for maximum fill rate
Servo drive system for precision print registration
Quick change tooling
Swingarm 15” touchscreen HMI
Wi-Fi connectivity
Batch recording

Capabilities

Output up to 60,000 PPH
Single or Double-Sided Laser Drilling
Adjustable aperature:
- Diameter – 0.400 to1.500mm
- Depth – 0.30 to 1.50mm
Drill up to 4 apertures per side with adjustable spacing
Color recognition system

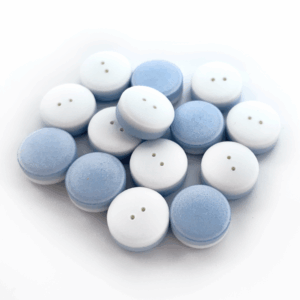

Laser Drilled sample product blue on one side and white on the other with two holes

Options

Vision Inspection System with single piece rejection
Validation document packages available
Floor level infeed bulk conveyor

Safety & Regulatory Compliance

We adhere to or surpass the strictest regulations set forth by the Food and Drug Administration (FDA) and their approach to Current Good Manufacturing Practice (CGMP) regulations.

cGMP for Pharmaceuticals
FDA 21 CFR Compliance:
- Part 210
- – Part 211
- – Part 11
CE Compliant
NFPA 79
IEC / EN 60204-1
ISO 13849-1
CRC, c 870
CDRH Compliant

View our FDA & CE Compliance page

Engineered for Performance You Can Trust

Proudly made in the USA, our machines are built for simplicity and reliability, featuring a user-friendly interface, low maintenance costs, and an included toolkit. With worldwide customer support, you can trust Ackley Hartnett to provide reliable performance and help when you need it.
