LDI System

Laser Drill Hole Depth Inspection

What is the LDI System?

This system revolutionizes tablet inspection machines for pharmaceuticals with unparalleled precision and efficiency. This state-of-the-art device employs advanced laser technology to measure hole depth and diameter with an exceptional accuracy of 0.5 microns. By integrating seamlessly into existing production lines, it offers a non-destructive, rapid, and highly accurate method for quality control, ensuring consistent product performance and regulatory compliance while eliminating human error.

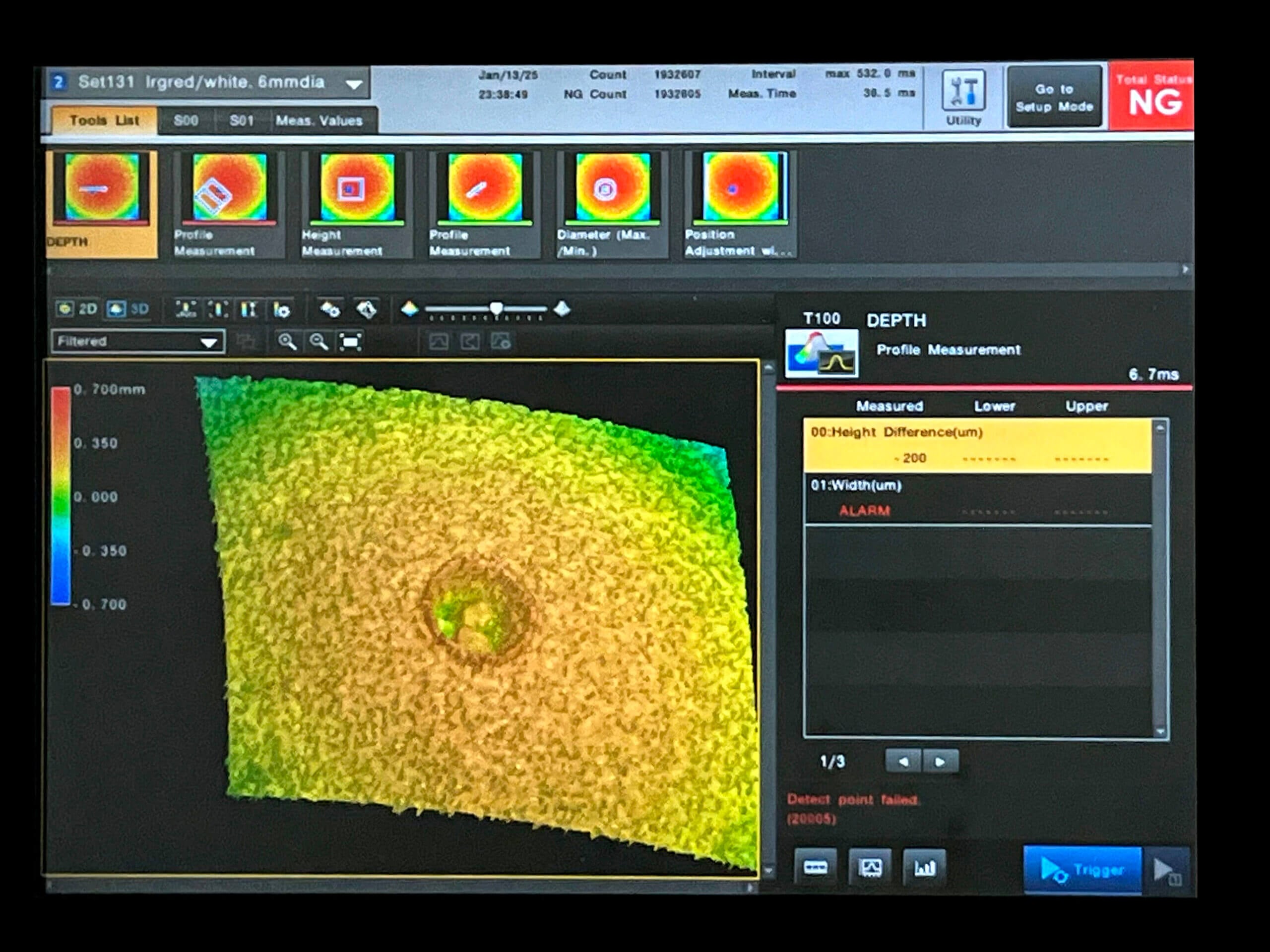

A computer screen displays a 3D surface profile measurement with a color-coded height map, graphs, and tools—typical of inspection machines for pharmaceuticals—plus an alarm notification on the right indicating a height difference issue.

Machine Features

  • Ultra-precise inspection: 0.5 micron accuracy for hole depth and diameter measurement
  • Superior hole uniformity assessment
  • Fast: Potential for inline integration with high-speed inspection rates
  • Safe: Non-destructive testing preserves product integrity
  • Reliable: Eliminates human error in identifying hole start and end points
  • Accurate: High-resolution 3D imaging for precise hole measurement
  • Efficient: Increased inspection rate up to 10% of tablets vs. 2% with manual inspection
  • Versatile: Compatible with various machines and tablet types
  • Data-driven: Exportable logs and 3D models for comprehensive analysis

Safety & Regulatory Compliance

We adhere to or surpass the strictest regulations set forth by the Food and Drug Administration (FDA) and their approach to Current Good Manufacturing Practice (CGMP) regulations.

  • cGMP for Pharmaceuticals
  • FDA 21 CFR Compliance:
    • Part 210
    • Part 211
    • Part 11
    • Part 1040: Class 1 Laser System
  • CE Compliant
  • NFPA 79
  • IEC 60825-1
  • IEC / EN 60204-1
  • ISO 13849-1
  • CRC, c 870
  • CDRH Compliant

link to Ackley Hartnett
ackley hartnett logo with white background

Engineered for Performance You Can Trust

Proudly made in the USA, our machines are built for simplicity and reliability, featuring a user-friendly interface, low maintenance costs, and an included toolkit. With worldwide customer support, you can trust Ackley Hartnett to provide reliable performance and help when you need it.
