VIP Laser Writer

CO2 or UV Laser Marking for Tablets & Capsules

Precision non-contact laser marking machine engraves indelible logos into the outer coating of pharmaceutical and confectionary products for identification, counterfeit protection, and brand recognition. Features a single-lane carrier timing belt feed system that exposes both sides of product for inspection and laser processing. Effortless continuous operation with minimal user interaction or downtime. Requires only compressed air and power for operation.

Out of up to 60,000 PPH

VIP Laser Drilling Machine pictured on a clear background

Machine Features

Single-lane carrier link system
Safety enclosure with interlocked doors & enclosed beam path
Servo based motion with optical encoder position feedback
Carrier timing belt with precision machined pockets
Tool-free installation of carrier links
Adjustable hopper assembly for quick changeover between products
Patented hopper air-assist feature & clean air filtration system
Articulated swing arm with 17” touchscreen HMI
User friendly interface
Programmable settings for up to 50 products
Portable with a small footprint
Low maintenance cost
Worldwide customer support
Fume extraction unit & toolkit

Capabilities

Output Up to 60,000 PPH
Single or Double-Sided Marking with independent graphics for each side
Mark alpha-numeric text, vector graphics, logos and bar codes
Graphics editing software provided
Adjustable parameters to control logo size, line width and etch depth
Mark Bi-Color products with logo oriented on selected color side

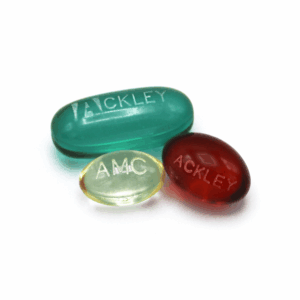

Three oval gelatin capsules in green, yellow, and red, each with laser engraved text. The green capsule reads "ACKLEY," the yellow reads "AMC," and the red reads "ACKLEY," all on a white background.

Options

Vision inspection with vacuum-based single product rejection
OPC-UA Server Gateway
HMI screen text translated and displayed in language of choice
Secure remote support capabilities
Auto-backup of product settings

Safety & Regulatory Compliance

We adhere to or surpass the strictest regulations set forth by the Food and Drug Administration (FDA) and their approach to Current Good Manufacturing Practice (CGMP) regulations.

cGMP for Pharmaceuticals
FDA 21 CFR Compliance:
- Part 210
- Part 211
- Part 11
- Part 1040: Class 1 Laser System
CE Compliant
NFPA 79
IEC 60825-1
IEC / EN 60204-1
ISO 13849-1
• CRC, c 870
• CDRH Compliant

View our FDA & CE Compliance page

Engineered for Performance You Can Trust

Proudly made in the USA, our machines are built for simplicity and reliability, featuring a user-friendly interface, low maintenance costs, and an included toolkit. With worldwide customer support, you can trust Ackley Hartnett to provide reliable performance and help when you need it.
